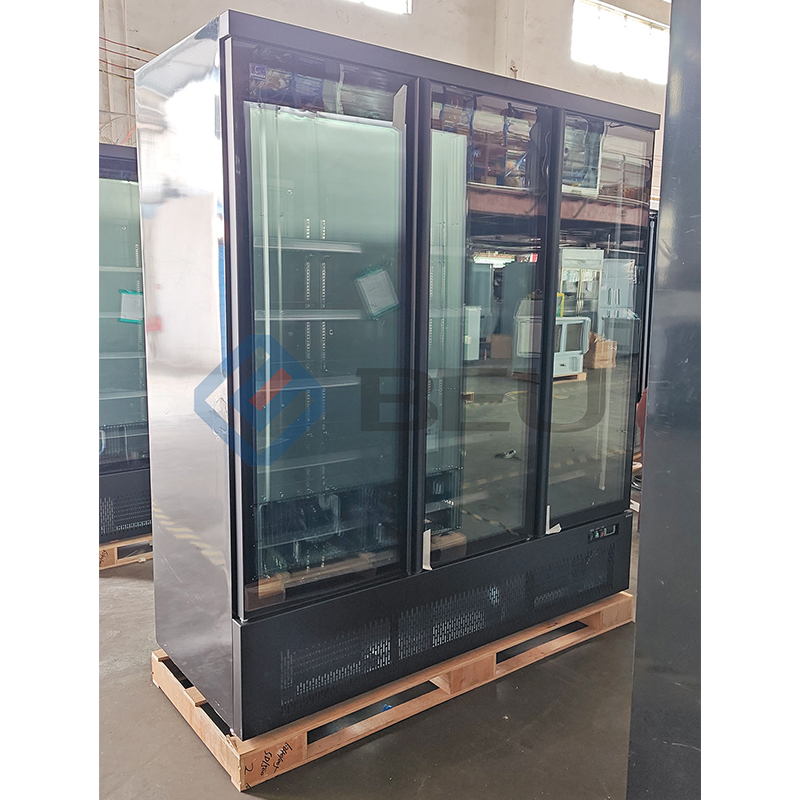

| Model Number | SG500 | SG1000 | SG1500 | SG2000 | SD500 | SD1000 | SD1500 | SD2000 |
| Unit Size (mm) [WxDxH] | 635x740x2100 | 1260x740x2100 | 1890x740x2100 | 2520x740x2100 | 635x790x2100 | 1260x790x2100 | 1890x790x2100 | 2520x790x2100 |
| Net Capacity (L) | 450 | 1000 | 1600 | 2100 | 450 | 1000 | 1600 | 2100 |
| Temperature Range (°C) | 0~10 | -22~-18 | ||||||
| Climatic Class | 4 (32°C & 55% R.H) | |||||||
| Voltage | 220~240V/50Hz | |||||||
| Controller Type | Digital | |||||||
| Body Material | Black coated steel | |||||||
| Body Thickness (mm) | 65 | 65 | ||||||
| Isolation | Cyclopentane (40kg/m³) | |||||||
| Door Quantity (Pc) | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Chamber Quantity (Pc) | 1 | |||||||
| Shelf Quantity (Pc) [EN 60x40] | 5 | 10 | 15 | 20 | 5 | 10 | 15 | 20 |
| Cooling Mode | Forced air | |||||||
| Defrosting Mode | Auto | |||||||
| Rated Power (W) | 350 | 600 | 900 | 1200 | 800 | 1600 | 2000 | 3200 |
| Compressor (HP) | 1/6 | 1/4 | 1/2 | 1/4*2 | 1 | 1 1/2 | 1 | 1 1/2*2 |
| Energy Consumption (Kwh/24H) | 3.0 | 5.0 | 8.0 | 10.0 | 11.0 | 23.0 | 30.0 | 42.0 |
| Energy Class | / | / | / | / | / | / | / | / |
| Refrigerant | R290 | R404A | ||||||
| Customized Items | Voltage/Body material/Shelf material/Digital controller | |||||||
32°C working temperature
Forced air cooling system
65 mm insulation thickness
40 Kg/M³ Ecology friendly insulation material
High efficency compressors
Using R290 refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior & Interior coated steel body material
Digital thermostat, with temperature display
High spped and low noise fan motor
Auto defrosting system
Extra narrow alluminum frame middle hollow glass door, 2 layer glasses for chiller without anti-fogging heater, 3 layers glasses for freezer with anti-fogging heater
Plastic coated shelves bearing 60Kgs food
Led lighting
The refrigeration system is designed to bottom mounted condenser unit which can be pull out from front side and top mounted evaporator unit, to provide the users with more commodities accessibility and maintenance convenience.
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: coated galvanized steel external front/side panels, galvanized internal back panel, corrosion resistant & easy cleaning.
Interior: coated galvanized steel for all sides, corrosion resistant & easy cleaning.
With round edges and corners design for cleaning inside.
Insulation: with 65mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
Extra narrow alluminum frame middle hollow glass door, 2 layer glasses for chiller without anti-fogging heater, 3 layers glasses for freezer with anti-fogging heater
With removable multi-airbag door gasket.
With removable alluminum door handle.
Self-closing door with 120° opening and stopping.
With long buit-in door handle, 150mm height
Castors with front brakes: 100mm, 125mm, 150mm height
Thermostat: Dixell or Chinese brands
Door handle: can be customized
5pcs plastic coated wire shelf per door
The shelves brackets are with many holes, convenient for shelf adjustment
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Refrigerant: R290, R404A (Compressor will be changed)
Cabinet material: coated steel, 201, 304 stainless steel
Shelf: Stainless steel & plastic coated wire
Adjustable stainless steel legs: 100mm, 125mm
