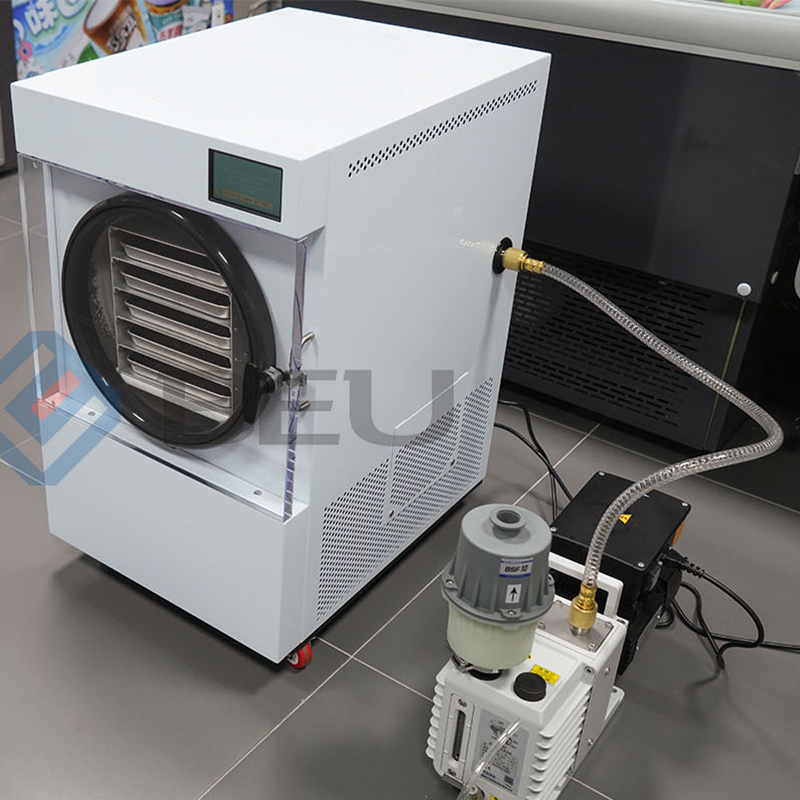

| Mode Number | FD5 | FD10 |
| Tray Dimensions (WxLxH) | 195mm x 460mm x 20mm | 270mm x 760mm x 21mm |
| Tray Quan�ty (pcs) | 5 | 10 |
| Freeze-dring Area (m²) | 0.45 | 2.0 |
| Layer Space of Shelf (mm) | 44 | 35 |
| Compressor Brand | Cubigel | Cubigel |
| Climate Class | SN/N/ST | SN/N/ST |
| Rated Voltage/Frequency | 220V/50-60Hz or 110/60Hz | 220V/50-60Hz |
| Rated Power (W) | 1,400 | 3,750 |
| Rated Current (A) | 10 | 17 |
| Foaming Agent | Cyclopentane | Cyclopentane |
| Total Gross Volume (L) | 44 | 155.7 |
| Refrigerant/Amount | R410A / 225 g | R410A/360g |
| Freezing Capacity (kg/24h) | 7 | 20 |
| Freeze-drying Ability (once) (kg) | 4-9 | 12-20 |
| Net Weight (kg) | 60 | 130 |
| Noise (db) | ≤65 | ≤65 |
| Product Size (mm) (WxDxH) | 458x594x795 | 618x914x979 |
The products are designed to using high quality materials, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: more food storage space, food sanitation, lower using cost
The products are designed to freezing dry all kinds of food including fruits, meant, vergitables for household through extra low temperature and extra low pressure, the whole processing of freezing dry is auotamatic, no need manual operation
32°C working temperature
Static cooling system
High efficency compressors
Using R290 refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior coated steel & Interior stainless steel body material
Digital thermostat, Touch screen with temperature display
High speed and low noise fan motor
Auto defrosting
Auto air exhausting & drainning
High strength transparant door
High speed vacuum pump
Stainless steel food trays
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: coated steel panels, corrosion resistant & easy cleaning.
Interior: high quality stainless steel for all sides, corrosion resistant & easy cleaning.
Insulation: with 75mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
High strength transparant door
With high seal rubber door gasket
With lock
5pcs plastis stainless steel food tray
The shelf frame with defrosting heater
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz
