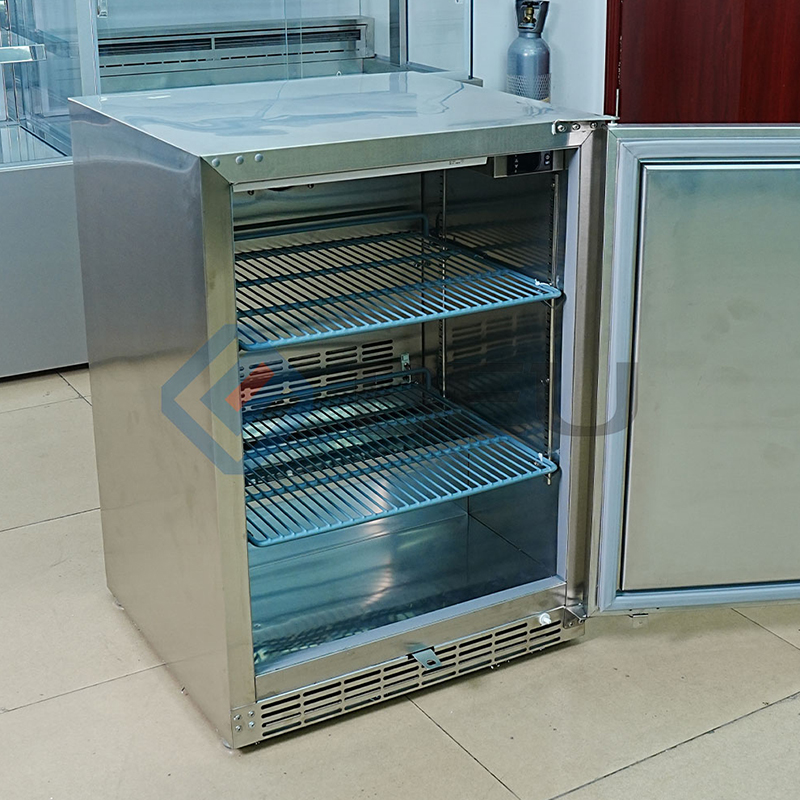

| Model Number | BC-160-SS | BD-160-SS | BC-160-2D | BD-160-2D | BC-160-SG |
| Unit Size (mm) [WxDxH] | 610x610x865 | ||||
| Net Capacity (L) | 150 | 140 | 150 | 140 | 150 |
| Temperature Range (°C) | 0~10 | 0~-18 | 0~10 | 0~-18 | 0~10 |
| Climatic Class | 5 (40°C & 80% R.H) | ||||
| Voltage | 110V/60Hz | ||||
| Controller Type | Digital | ||||
| Body Material | AISI 304 | ||||
| Body Thickness (mm) | 40 | 50 | 40 | 50 | 40 |
| Isolation | Cyclopentane (40kg/m³) | ||||
| Door Quantity (Pc) | 1 | ||||
| Chamber Quantity (Pc) | 1 | ||||
| Shelf Quantity (Pc) [EN 60x40] | 2 | 2 | / | / | 2 |
| Cooling Mode | Forced air | ||||
| Defrosting Mode | Auto | ||||
| Rated Power (W) | 180 | 250 | 180 | 250 | 180 |
| Compressor (HP) | 1/6 | 1/4 | 1/6 | 1/4 | 1/6 |
| Energy Consumption (Kwh/24H) | 1.8 | 4.2 | 1.8 | 4.2 | 1.8 |
| Energy Class | / | / | / | / | / |
| Refrigerant | R600a | ||||
| Customized Items | Voltage/Body material/Digital controller | ||||
The products are designed to using high quality stainless steel, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: more food storage space, food sanitation, lower using cost
The products are designed to be built-in cabinet or under counter and used in household or outdoor purpose, the condenser's ventilation is designed to be in the bottom of front, no need to leav enough space in back or sides
The products are designed to be used together with BBQ oven or equipment.
38°C working temperature
Forced air cooling system
45 mm insulation thickness
40 Kg/M³ Ecology friendly insulation material
High efficency compressors
Using R600a refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior & Interior 304 stainless steel body material
Digital thermostat, with temperature display
High speed and low noise fan motor
Auto defrosting system
Extra thickness door, self-closing
Plastic coated shelves bearing 60Kgs food
The refrigeration system is designed to be front ventilation which no need to leave enough space in the back and sides, the product can be easy to be insert into a cabinet or under counter. The repairing and matainance of the refrigeration system is outside of cabinet, no need to take out the foods during product service to ensure the food safety, besides save service time.
The refrigeration system is using R600a (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: high quality 304 stainless steel for front, top and sides, galvanized external back/bottom panels, corrosion resistant & easy cleaning.
Interior: high quality 304 stainless steel for all sides, corrosion resistant & easy cleaning.
With round edges and corners design for cleaning inside.
Insulation: with 45mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
High quality 304 stainless steel exterior & interior.
With removable multi-airbag door gasket.
With long recessed door handle.
Self-closing door with 120° opening and stopping.
2pcs plastis coated shelves
The shelves are adjustable
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Cabinet material: 201, 304 stainless steel
Shelf: Stainless steel & plastic coated wire
Adjustable stainless steel legs: 100mm, 125mm, 150mm height
Castors with front brakes: 100mm, 125mm, 150mm height
Thermostat: can be fixed inside or outside of the cabinet
Door handle: can be customized
Glass door: with or without hetaer for anti-fogging
