| Model Number | QG12L1F | QG15L2F | QG18L3F |
| Unit Size (mm) [WxDxH] | 1200x880x1450 | 1500x880x1450 | 1880x880x1450 |
| Pan Quantity (L) [GN1/6] | 18 | 24 | 30 |
| Temperature Range (°C) | 0~10 | ||
| Climatic Class | 4 (32°C & 55% R.H) | ||
| Voltage | 220~240V/50Hz | ||
| Controller Type | Digital | ||
| Body Material | AISI 201 | ||
| Body Thickness (mm) | 60 | ||
| Isolation | Cyclopentane (40kg/m³) | ||
| Door Quantity (Pc) | 2 | 2 | 3 |
| Chamber Quantity (Pc) | 1 | ||
| Shelf Quantity (Pc) | 1 | 2 | 3 |
| Cooling Mode | Forced air | ||
| Defrosting Mode | Auto | ||
| Rated Power (W) | 300 | 350 | 350 |
| Compressor (HP) | 1/6 | 1/5 | 1/5 |
| Energy Consumption (Kwh/24H) | 3.5 | 4.0 | 4.0 |
| Energy Class | / | / | / |
| Refrigerant | R-290 | ||
| Customized Items | Voltage/Body material/Digital controller | ||
The products are designed to using high quality stainless steel, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: food sanitation, lower using cost

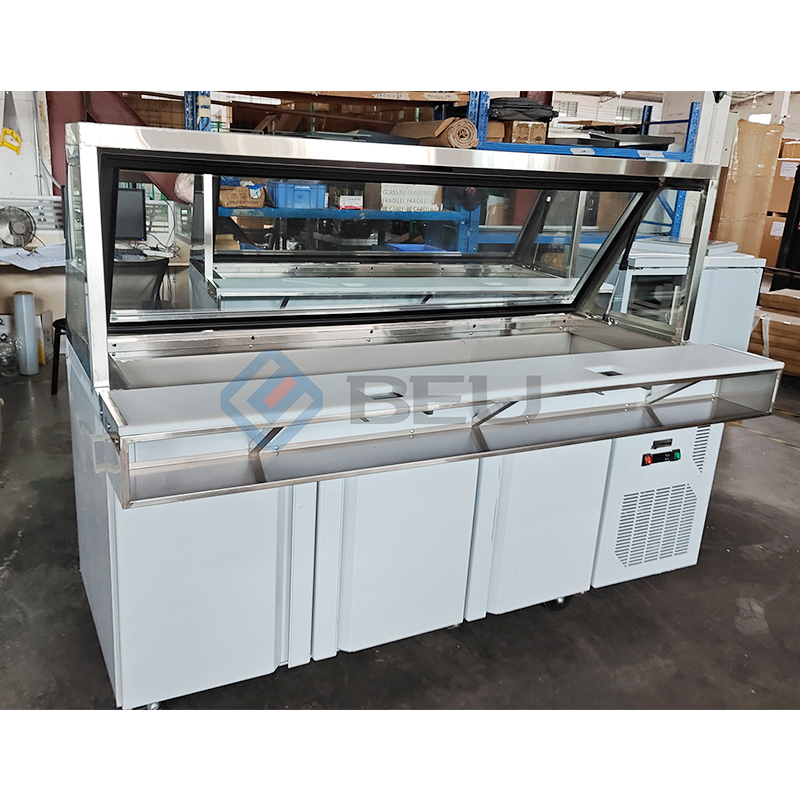

The products are designed for food service to display refrigerated salad, sandwich, food ingredients with different GN pans
32°C working temperature
Forced air cooling system
60 mm insulation thickness
40 Kg/M³ Ecology friendly insulation material
High efficency compressors
Using R290 refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior & Interior 304 stainless steel body material
Digital thermostat, with temperature display
High speed and low noise fan motor
Auto defrosting system
Extra thickness door, self-closing
Plastic coated shelves bearing 60Kgs food
With stainless steel frame glass door lid
Suible for all sizes of GN pans
Stainless steel frame with LED lighting
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: high quality 304 stainless steel for front/back, top and sides, bottom panels, corrosion resistant & easy cleaning.
Interior: high quality 304 stainless steel for all sides, corrosion resistant & easy cleaning.
With round edges and corners design for cleaning inside.
Insulation: with 40mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
Due to different food service, there is different top types: stainless steel lids, stainless steel table, stainless steel preparation top, marble top
High quality 304 stainless steel exterior & interior.
Extra thickness & high-density polyurethane insulation.
With removable multi-airbag door gasket.
With long recessed door handle.
Self-closing door with 120° opening and stopping.
1pc plastic coated wire shelf per door
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Refrigerant: R290, R404A (Compressor will be changed)
Cabinet material: 201, 304 stainless steel
Adjustable stainless steel legs: 50mm,100mm, 125mm, 150mm height
Castors with front brakes: 50mm, 100mm, 125mm, 150mm height
Thermostat: Dixell or Chinese brands
Door handle: can be customized
