| Model Number | UC-27C-1 | UC-27F-1 | UC-48C-2 | UC-48F-2 | UC-60C-2 | UC-60C-2 | UC-72C-3 | UC-72F-3 |
| Unit Size (mm) [WxDxH] | 686x760x900 (27"x30"x35.4") | 1220x760x900 (48"x30"x35.4") | 1520x760x900 (60"x30"x35.4") | 1830x760x900 (72"x30"x35.4") | ||||
| Net Capacity (L) | 130 (4.6cu.ft) | 230 (8.1cu.ft) | 320 (11.3cu.ft) | 380 (13.4cu.ft) | ||||
| Temperature Range (°C) | 0~10 (32~50°F) | -22~-18 (-8~0°F) | 0~10 (32~50°F) | -22~-18 (-8~0°F) | 0~10 (32~50°F) | -22~-18 (-8~0°F) | 0~10 (32~50°F) | -22~-18 (-8~0°F) |
| Climatic Class | 4 (32°C & 55% R.H) | |||||||
| Voltage | 110V/60Hz | |||||||
| Controller Type | Digital | |||||||
| Body Material | AISI 201 or 304 | |||||||
| Body Thickness (mm) | 60 | |||||||
| Isolation | Cyclopentane (40kg/m³) | |||||||
| Drawer Quantity (Pc) | 2 | 4 | 4 | 6 | ||||
| Chamber Quantity (Pc) | 1 | |||||||
| Shelf Quantity (Pc) | / | / | / | / | ||||
| Cooling Mode | Forced air | |||||||
| Defrosting Mode | Electric heater | |||||||
| Rated Power (W) | 280 | 450 | 350 | 500 | 350 | 500 | 350 | 500 |
| Compressor (HP) | 1/6 | 3/8 | 1/5 | 1/2 | 1/5 | 1/2 | 1/5 | 1/2 |
| Energy Consumption (Kwh/24H) | 3.0 | 7.0 | 4.0 | 8.0 | 4.0 | 8.0 | 4.0 | 8.0 |
| Energy Class | / | / | / | / | / | / | / | / |
| Refrigerant | R-290 | |||||||
| Customized Items | Voltage/Body material/Drawers/Glass door/Digital controller/Wheel | |||||||
The products are designed to using high quality stainless steel, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: more food storage space, food sanitation, lower using cost
The products are designed to use back mounted condenser unit, to get more food storage space
32°C working temperature
Back mounted condenser unit
Forced air cooling system
With special designed air circulation panel for better temperature balance in different place
60 mm insulation thickness
40 kg/m³ Ecology friendly insulation material
High efficency compressors
Using R290 refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior & Interior 304 stainless steel body material

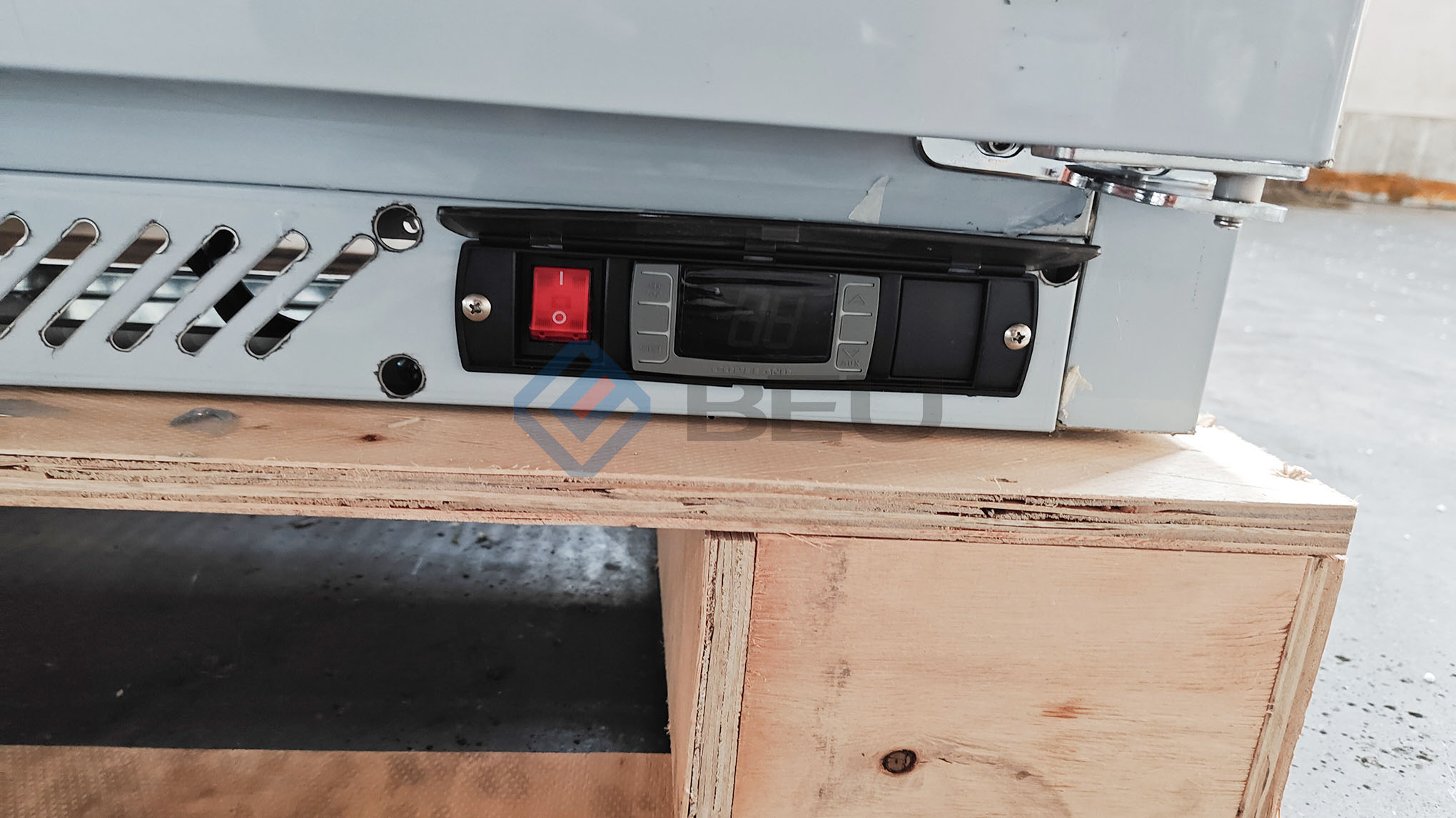

Digital thermostat, with temperature display
High speed and low noise fan motor
Auto defrosting system
Extra thickness door, self-closing
Plastic coated shelves bearing 60kgs food
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).

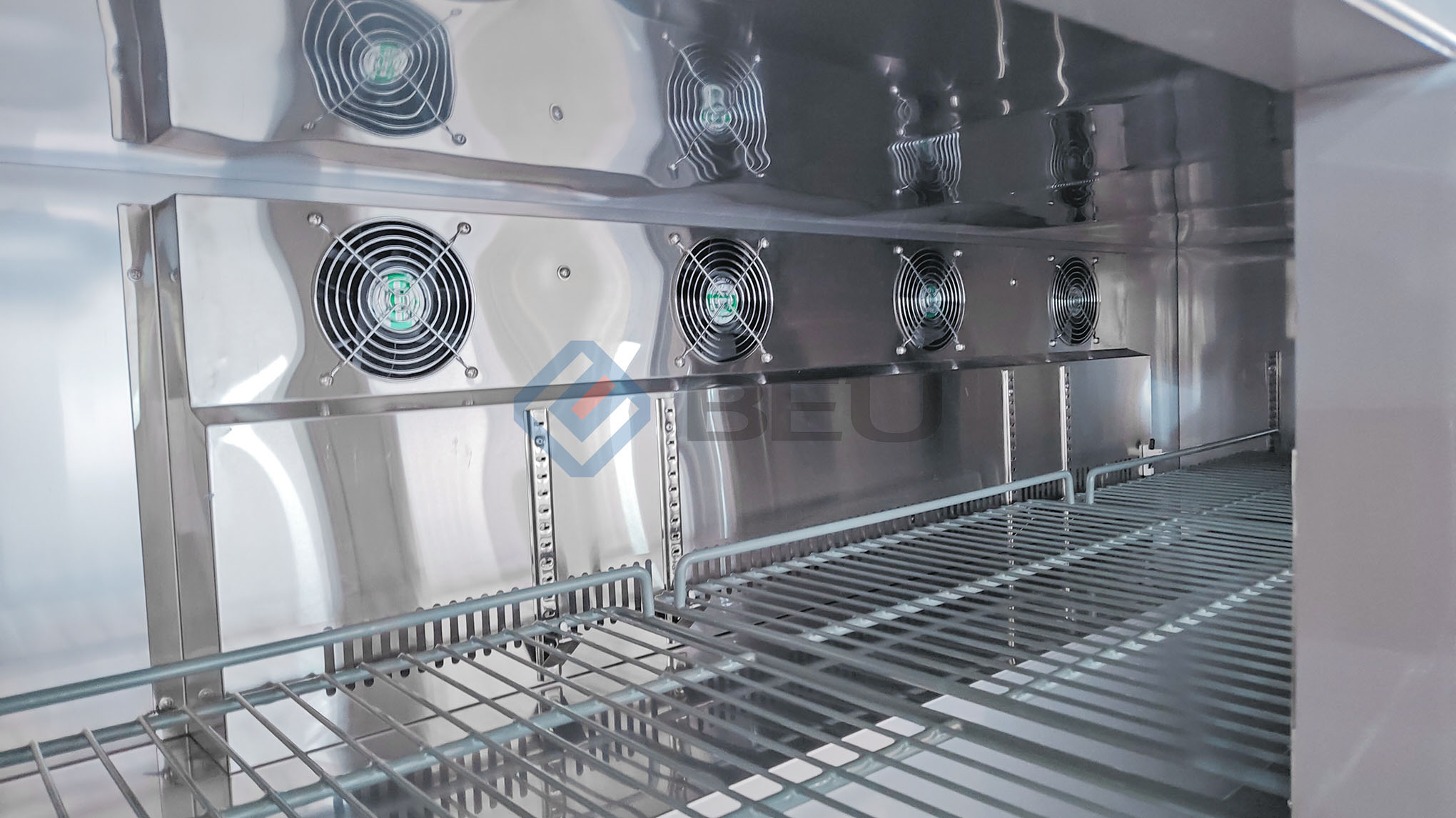

The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet’s space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: high quality 304 stainless steel for front, top and sides, galvanized external back/bottom panels, corrosion resistant & easy cleaning.
Interior: high quality 304 stainless steel for all sides, corrosion resistant & easy cleaning.
With round edges and corners design for cleaning inside.
Insulation: with 60mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
High quality 304 stainless steel exterior & interior.
Extra thickness & high-density polyurethane insulation.
With removable multi-airbag door gasket.
With built-in door handle.
Self-closing door with 120° opening and stopping.
2pcs plastic coated wire shelf per door
The shelf brackets are with many holes, the shelf can be adjusted due to food storage need
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Refrigerant: R290, R404A (Compressor will be changed)
Cabinet material: 201, 304 stainless steel
Shelf: Stainless steel & plastic coated wire
Adjustable stainless steel legs: 100mm/4inches, 125mm/5inches, 150mm/6inches height
Castors with front brakes: 100mm/4inches, 125mm/5inches, 150mm/6inches height
Thermostat: Dixell or Chinese brands
Door handle: can be customized
Glass door for chiller: 2 layer middle hollow tempered glasses, aluminum frame, aluminum door handle, with or without anti-fogging heater
Glass door for freezer: 3 layer middle hollow tempered glasses, aluminum frame, aluminum door handle, with anti-fogging heater
2-drawer kit: Stainless steel drawer container, stainless steel drawer sliders
Backsplash: 20mm thickness, 50~150mm height
