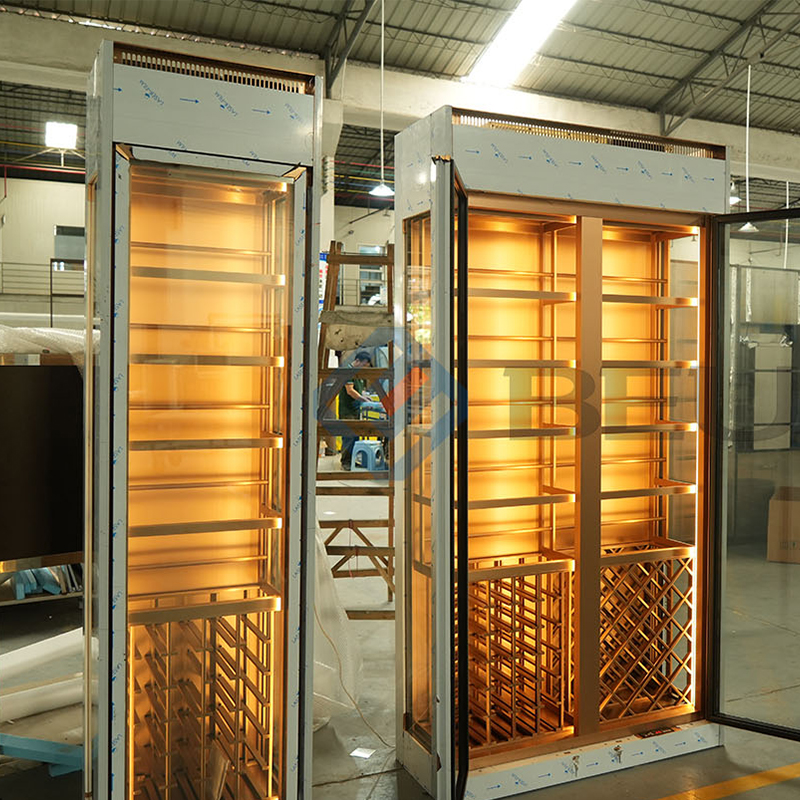

| Model Number | RW50 | RW100 | RW150 |
| Unit Size (mm) [WxDxH] | 600x500x2380 | 1200x500x2380 | 1800x500x2380 |
| Net Capacity (Bottle) | 50 | 100 | 150 |
| Temperature Range (°C) | 12~20 | ||
| Climatic Class | 3 (26°C & 45% R.H) | ||
| Voltage | 220~240V/50Hz | ||
| Controller Type | Digital | ||
| Body Material | AISI 304 | ||
| Body Thickness (mm) | 40 | ||
| Isolation | / | ||
| Door Quantity (Pc) | 1 | 2 | 3 |
| Chamber Quantity (Pc) | 1 | ||
| Shelf Quantity (Pc) | / | / | / |
| Cooling Mode | Forced air | ||
| Defrosting Mode | Auto | ||
| Rated Power (W) | 300 | 300 | 600 |
| Compressor (HP) | 1/4 | 1/4 | 1/4*2 |
| Energy Consumption (Kwh/24H) | / | / | / |
| Energy Class | / | / | / |
| Refrigerant | R134a | ||
| Customized Items | Voltage | ||
The products are designed to using high quality stainless steel, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: more food storage space, food sanitation, lower using cost
The products are specially designed to cool and keep the high quality of red wine
26°C working temperature
Forced air cooling system
40 mm high density insulation material
High efficency compressors
Using R600a refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Gold exterior & Interior 304 stainless steel body material
Digital thermostat, with temperature display
Low noise fan motor
Auto defrosting system
Stainless steel frame glass door
Stainless steel wine racks
LED lighting
The refrigeration system is designed to all parts of refrigeration system are integraded into a whole unit, and put on top of cabinet, the evaporator is not fixed in the cabinet like as traditional refrigeration system, to provide the users with more food stroage space. The repairing and matainance of the refrigeration system is outside of cabinet, no need to take out the foods during product service to ensure the food safety, besides save service time.
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: high quality 304 stainless steel, color is optional
Interior: high quality 304 stainless steel, color is optional
High quality racks for wine bottles
Insulation: with 40mm high density material
Stainless steel frame
2 layers, middle hollow tempred glasses, with heater for anti-fogging
With removable multi-airbag door gasket.
With long recessed door handle.
Self-closing door with 120° opening and stopping.
Stainless steel racks for bottles
The shelves racks are designed for horizental and vertical bottles position
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Refrigerant: R290, R134a (Compressor will be changed)
Cabinet material: 201, 304 stainless steel
Door handle: can be customized
