BEU's 6 Pan Refrigerated Topping Unit is designed for pizza shops, sandwich bars, salad stations and commercial kitchens that require convenient access to chilled ingredients during food preparation.
Featuring a compact countertop design, six organized food pan positions and reliable refrigeration components, this commercial refrigerated topping rail helps kitchen staff keep ingredients accessible while maintaining an efficient preparation workflow.
Available with customized cover designs, cabinet materials and electrical configurations, the unit is also suitable for commercial kitchen equipment distributors and OEM/ODM buyers.
| Model Number | VRX1200-335 | VRX1350-335 | VRX1500-335 | VRX1800-335 | VRX2000-335 | VRX1200-395 | VRX1350-395 | VRX1500-395 | VRX1800-395 | VRX2000-395 |
| Unit Size (mm) [WxDxH] | 1200x335x425 | 1350x335x425 | 1500x335x425 | 1800x335x425 | 2000x335x425 | 1200x395x425 | 1350x395x425 | 1500x395x425 | 1800x395x425 | 2000x395x425 |
| Pan Quantity (L) [GN1/4 or GN1/3] | 5 | 6 | 7 | 9 | 10 | 4 | 5 | 6 | 8 | 9 |
| Temperature Range (°C) | 0~10 | 0~10 | ||||||||
| Climatic Class | 4 (32°C & 55% R.H) | 4 (32°C & 55% R.H) | ||||||||
| Voltage | 220~240V/50Hz | 220~240V/50Hz | ||||||||
| Controller Type | Digital | Digital | ||||||||
| Body Material | AISI 201 | Coated steel | ||||||||
| Body Thickness (mm) | 45 | 45 | ||||||||
| Isolation | Cyclopentane (40kg/m³) | Cyclopentane (40kg/m³) | ||||||||
| Door Quantity (Pc) | / | / | / | / | / | / | / | / | / | / |
| Chamber Quantity (Pc) | 1 | 1 | ||||||||
| Shelf Quantity (Pc) | / | / | / | / | / | / | / | / | / | / |
| Cooling Mode | Static | Static | ||||||||
| Defrosting Mode | Auto | Auto | ||||||||
| Rated Power (W) | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 |
| Compressor (HP) | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 |
| Energy Consumption (Kwh/24H) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Energy Class | / | / | / | / | / | / | / | / | / | / |
| Refrigerant | R-290 | R-290 | ||||||||
| Customized Items | Voltage/Body material/Digital controller/Stainless steel pan cover/Curved glass pan cover | |||||||||
Confirm GN pan sizes, pan depth, available covers and electrical specifications before ordering.
Explore more sizes and configurations in our Commercial Refrigerated Salad Bar Series.
The products are designed to using high quality stainless steel, eco friendly insulation material and energy saving electrical parts, to provide the users with cooler food temperature, lower energy cost, easier service after sales for higher product value: food sanitation, lower using cost
The products are designed for food service to display refrigerated salad, sandwich, food ingredients
32°C working temperature
Static cooling system
40 mm insulation thickness
40 Kg/M³ Ecology friendly insulation material
High efficency compressors
Using R290 refrigerant (environmentally friendly hydrocarbon refrigerant), zero ODP and low GWP
Exterior & Interior 304 stainless steel body material
Digital thermostat, with temperature display
High speed and low noise fan motor for condenser
Auto defrosting system
With 8mm thickness tempred glass cover
Suible for GN1/4 , GN1/3, GN1/6 pans
The refrigeration system is using R290 (environmentally friendly hydrocarbon refrigerant) with zero ozone depletion potential (ODP) & low global warming potential (GWP).
The refrigeration system has a special designed airflow to provide well-balanced temperature for all trays.
All of the parts of refrigeration system are precisely calculated and matched by our experienced engineers based on the cabinet's space, ambient temperature, cabinet temperature and food temperature, and tested for long time in product performance laboratory to get final system configuration.
The refrigeration system is using high efficiency compressor, high speed & lower power EC fan motors, to make the product save lots of energy consumption comparing to traditional refrigeration system (R404A refrigeration system)
Exterior: high quality 304 stainless steel for all sides, corrosion resistant & easy cleaning.
Interior: high quality 304 stainless steel for all sides, corrosion resistant & easy cleaning.
Insulation: with 40mm thickness & 40±2 Kg/M³ high density polyurethane insulation for entire cabinet structure and solid door, zero ozone depletion potential (ODP) and low global warming potential (GWP).
Without doors, but with glass cover to display the refrigerated salad, sandwich, food ingredients
No shelves, but with pan deviders to avoid the gas between the pans
Voltage: 110V/60Hz, 220V/50Hz, 220V/60Hz ( compressor will be changed)
Refrigerant: R290
Cabinet material: 201, 304 stainless steel
Thermostat: Dixell or Chinese brands
Stainless steel lid
Curved glass cover

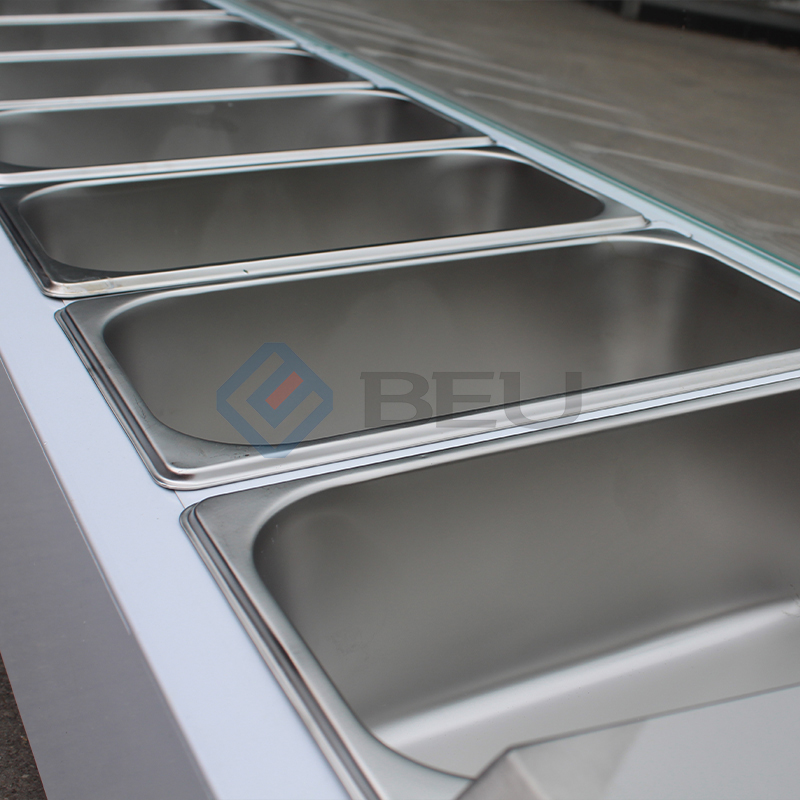

The six-pan layout allows operators to arrange vegetables, pizza toppings, sandwich fillings and other chilled ingredients in separate compartments.
Keeping frequently used ingredients within easy reach supports a more organized food preparation process and reduces unnecessary movement between storage and preparation areas.
Designed for countertop placement, this refrigerated topping unit provides ingredient storage without requiring an additional full-height refrigerator.
Its narrow-depth construction makes it suitable for commercial kitchens where counter space and workflow efficiency are important.
The unit features a static cooling system, digital temperature control and R290 refrigeration technology.
Its insulated cabinet construction is designed to reduce heat transfer and support temperature control during normal operation.
Actual food temperatures depend on operating conditions, food loading and pan configuration. Operators should follow applicable food safety requirements.
Different foodservice environments may require different protection and presentation arrangements.
BEU offers stainless steel lid and curved glass cover options, together with selected cabinet material and control configurations.
These options allow equipment buyers to select a suitable design for their preparation station and market requirements.
This countertop refrigerated topping rail is suitable for foodservice businesses requiring quick access to organized chilled ingredients.
| Application | Benefits |
|---|---|
| Pizza Shops | Keeps pizza toppings conveniently arranged near the preparation area |
| Sandwich Shops | Provides separate compartments for vegetables, fillings and chilled ingredients |
| Salad Bars | Supports organized salad ingredient preparation |
| Cafés and Delis | Adds accessible refrigerated storage to food assembly stations |
| Commercial Kitchens | Helps organize ingredients within existing countertop workspaces |
For kitchens requiring enclosed refrigerated storage beneath the preparation surface, explore our Commercial Saladette Refrigerators.
Guangzhou BEU Electric Appliance Co., Ltd. manufactures commercial refrigeration equipment for foodservice equipment suppliers, distributors and private-label brands.
In addition to standard refrigerated topping units, BEU provides selected OEM/ODM customization services to meet different purchasing requirements.
Customization options include:
Cabinet Materials: Material options suited to different applications and budgets.
Cover Designs: Stainless steel lids and curved glass covers.
Electrical Configurations: Voltage and frequency options for different markets.
Temperature Controllers: Alternative digital control options.
Private Label Branding: Customized logos, product labels and packaging.
Customization availability depends on the selected configuration, technical feasibility and order requirements.
Learn More About BEU OEM/ODM Refrigeration Services.
Important factors include available counter space, food pan compatibility, ingredient storage requirements, operating temperature and cover design.
Buyers should also confirm electrical specifications and applicable food safety requirements.
Yes. BEU offers selected customization options for cabinet materials, cover designs, electrical specifications, temperature controllers and private-label branding.
Yes. BEU provides commercial refrigeration manufacturing and OEM/ODM support for equipment distributors and project buyers. Product configurations, minimum order quantities and lead times can be discussed during quotation.
Looking for a commercial refrigerated topping unit manufacturer for your equipment distribution business or foodservice project?
BEU supplies countertop refrigerated topping rails with practical ingredient storage configurations and selected OEM/ODM options.
Contact our team to discuss your preferred cover design, electrical requirements, destination market and purchasing quantity.
